** If out of stock please allow 4-6 weeks from the date of order until the item is ready to ship .**

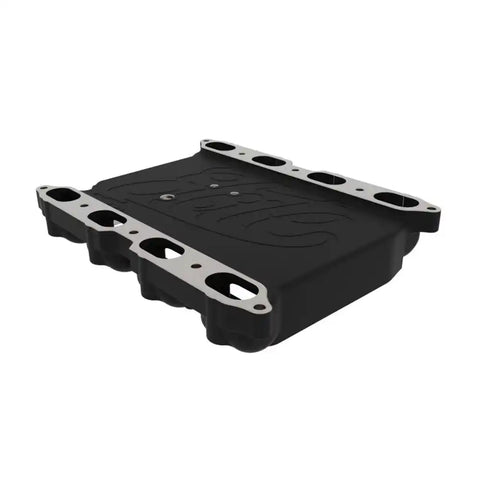

This 1UZ VVTI, 2UZ* and 3UZ manifold is the result of numerous improvement’s on the overall design since our first version launched a few years back.

The manifold features a unique 2 piece design which has helped us get the units as low and as tight as possible and now has the ability to be upgraded to include an ELATE W2A intercooler at a later stage if desired.

All manifolds ship with your choice of 10mm aluminium top plate however if something custom is needed just drop us an email to see if we are able to assist.

This manifold has been designed to accept 1UZ / VVTI injectors, if fitting to a 2UZ please let us know when ordering.

**Note** The hard line that connects the fuel rails in front and behind the manifold will need to be swapped out for a flexi AN line due to making contact with the manifold when installed.
**Note** SVT M112 superchargers also need the factory intercooler mount on the underside removed to allow it to mount to our top plates.
**Note** This manifold will not fit on 2UZ engines with a secondary air pump system located in the valley, if you are unsure if your vehicle has this please get in touch before ordering.

This kit includes the following items:

  • Billet 2-piece manifold.
  • Aluminium top plate to suit the charger of your choice.
  • 18 x Zinc plated M8 x 25 countersunk fasteners (for the top plate and manifold body assembly).
  • 10 x Zinc plated M8 x 55 cap screws (for attaching the manifold to the heads)
  • 3mm EPDM cord (installed)
  • Installation instructions.
  • Email assistance if required.
